How to create a Tree List report in ABAP
Mar 5, 2015
Reports which has the capability to drill down to multiple levels are of good use. It serves as a simple overview as well as more detailed report when you want to look into a particular record in detail. SAP makes it easy to create Tree List reports with Function Modules RS_TREE_CONSTRUCT and RS_TREE_LIST_DISPLAY.

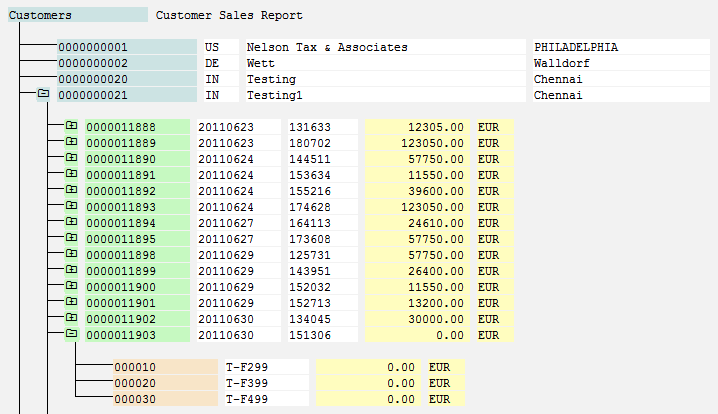

Now we are going to develop a Tree List report with three levels of details. First level will be the the list of Customers, second level will be the list of Sales Order Headers for that Customer and third level will be the list of Items in a particular Sales Order.
The task can be broken into three steps,
- Load the data
- Prepare Node Table
- Display the Tree List
Before going into the steps, we are going to declare the variables needed for our program. We have to store the three levels of data in three different internal tables and the first thing to do is defining the types for those three structures.
types:
"Customer Structure (Level 1)
begin of s_kna1,
kunnr type kna1-kunnr,
land1 type kna1-land1,
name1 type kna1-name1,
ort01 type kna1-ort01,
end of s_kna1,
"Sales order header structure (Level 2)
begin of s_vbak,
vbeln type vbak-vbeln,
erdat type vbak-erdat,
erzet type vbak-erzet,
netwr type vbak-netwr,
waerk type vbak-waerk,
kunnr type vbak-kunnr,
end of s_vbak,
"Sales order items structure (Level 3)
begin of s_vbap,
vbeln type vbap-vbeln,
posnr type vbap-posnr,
matnr type vbap-matnr,
netwr type vbap-netwr,
waerk type vbap-waerk,
end of s_vbap.
And now declare variables with above defined types…
data:
"Internal tables and Work Areas
"for all three levels of data
gt_kna1 type standard table of s_kna1,
gs_kna1 type s_kna1,
gt_vbak type standard table of s_vbak,
gs_vbak type s_vbak,
gt_vbap type standard table of s_vbap,
gs_vbap type s_vbap,
"Table which represents the data
"in tree format and passed to RS_TREE_CONSTRUCT
gt_node type standard table of snodetext,
gs_node type snodetext.
We have colors in our report and it is good practice to declare them as constants, so that we will be able to change them without messing up the program. The values comes from the Type Pool col.
constants:
c_col_key type c length 1 value col_key,
c_col_data type c length 1 value col_normal,
c_col_curr type c length 1 value col_total,
c_col_kunnr type c length 1 value col_key,
c_col_vbeln type c length 1 value col_positive,
c_col_posnr type c length 1 value col_group.
As I mentioned the program is just three steps…
start-of-selection.
perform load_all_data.
perform prepare_node_table.
perform display_list_tree.
##Load the data
We have to load the list of Customers into gt_kna1, followed by corresponding records of Sales Order Headers and Sales Order Items into gt_vbak and gt_vbap respectively.
form load_all_data .
"Read Customer data (Level 1)
select
kunnr
land1
name1
ort01
from kna1
into table gt_kna1
up to 50 rows.
"Read corresponding Sales Order headers (Level 2)
select
vbeln
erdat
erzet
netwr
waerk
kunnr
from vbak
into table gt_vbak
for all entries in gt_kna1
where
kunnr = gt_kna1-kunnr.
"Read corresponding Sales Order items (Level 3)
select
vbeln
posnr
matnr
netwr
waerk
from vbap
into table gt_vbap
for all entries in gt_vbap
where
vbeln = gt_vbap-vbeln.
endform.
That’s it and we have loaded the data needed.
##Prepare Node Table
We are going to prepare a table of structure snodetext which represents the data we have in tree structure and it will also contain the length and color specifications of fields.
Important fields in SNODETEXT are,
tlevel- Level of the data in the tree. (Root is considered as Level 1)name- First text field of the treenlength- Length of the first fieldcolor- Color of the first fieldtext,text1, …text9- Next fields in order left to righttlength,tlength1, …tlength9- Lengths of the corresponding fieldstcolor,tcolor1, …tcolor9- Colors of the correspoding fields
So our logic will be,
Add root node tlevel = 1
loop at Customers.
Add Customer with tlevel = 2
loop at corresponding Sales Order Headers.
Add Sales Order Header with tlevel = 3
loop at corresponding Sales Order Items.
Add Sales Order Item with tlevel = 4
endloop.
endloop.
endloop.
Now the exact code is as follows.
form prepare_node_table .
data:
l_netwr type c length 15.
"Create a root node
gs_node-tlevel = 1.
* gs_node-type = 'H'.
gs_node-name = 'Customers'.
gs_node-nlength = 20.
gs_node-color = c_col_key.
gs_node-text = 'Customer Sales Report'.
gs_node-tlength = 50.
append gs_node to gt_node.
loop at gt_kna1 into gs_kna1.
clear gs_node.
gs_node-tlevel = 2.
"Customer Number
gs_node-name = gs_kna1-kunnr.
gs_node-nlength = 20.
gs_node-color = c_col_kunnr.
"Country code
gs_node-text = gs_kna1-land1.
gs_node-tlength = 5.
gs_node-tcolor = c_col_data.
"Customer Name
gs_node-text1 = gs_kna1-name1.
gs_node-tlength1 = 40.
gs_node-tcolor1 = c_col_data.
"City
gs_node-text2 = gs_kna1-ort01.
gs_node-tlength2 = 25.
gs_node-tcolor2 = c_col_data.
append gs_node to gt_node.
loop at gt_vbak into gs_vbak
where kunnr = gs_kna1-kunnr.
clear gs_node.
gs_node-tlevel = 3.
"Sales Document Number
gs_node-name = gs_vbak-vbeln.
gs_node-nlength = 15.
gs_node-color = c_col_vbeln.
"Created date
gs_node-text = gs_vbak-erdat.
gs_node-tlength = 12.
gs_node-tcolor = c_col_data.
"Created Time
gs_node-text1 = gs_vbak-erzet.
gs_node-tlength1 = 10.
gs_node-tcolor1 = c_col_data.
"Net worth
l_netwr = gs_vbak-netwr.
gs_node-text2 = l_netwr.
gs_node-tlength2 = 15.
gs_node-tcolor2 = c_col_curr.
"Currency
gs_node-text3 = gs_vbak-waerk.
gs_node-tlength3 = 5.
gs_node-tcolor3 = c_col_curr.
append gs_node to gt_node.
loop at gt_vbap into gs_vbap
where vbeln = gs_vbak-vbeln.
clear gs_node.
gs_node-tlevel = 4.
"Item Number
gs_node-name = gs_vbap-posnr.
gs_node-nlength = 15.
gs_node-color = c_col_posnr.
"Material Number
gs_node-text = gs_vbap-matnr.
gs_node-tlength = 12.
gs_node-tcolor = c_col_data.
"Net worth
l_netwr = gs_vbap-netwr.
gs_node-text1 = l_netwr.
gs_node-tlength1 = 15.
gs_node-tcolor1 = c_col_curr.
"Currency
gs_node-text2 = gs_vbap-waerk.
gs_node-tlength2 = 5.
gs_node-tcolor2 = c_col_curr.
append gs_node to gt_node.
endloop.
endloop.
endloop.
endform.
##Display Tree List
Now to display the Tree List, you just have to call the Function Modules RS_TREE_CONSTRUCT and RS_TREE_LIST_DISPLAY sequentially. RS_TREE_CONSTRUCT takes gt_node as input and processes it internally and fills in the necessary fields of that internal table while RS_TREE_LIST_DISPLAY is for displaying the Tree List in the screen.
form display_list_tree .
call function 'RS_TREE_CONSTRUCT'
* EXPORTING
* INSERT_ID = '000000'
* RELATIONSHIP = ' '
* LOG =
tables
nodetab = gt_node
exceptions
tree_failure = 1
id_not_found = 2
wrong_relationship = 3
others = 4
.
if sy-subrc <> 0.
write sy-subrc.
endif.
call function 'RS_TREE_LIST_DISPLAY'
exporting
callback_program = sy-repid.
endform.
That’s it :) The entire program is below.
report zfar_list_tree.
type-pools:
col. "For color constants
types:
"Customer Structure (Level 1)
begin of s_kna1,
kunnr type kna1-kunnr,
land1 type kna1-land1,
name1 type kna1-name1,
ort01 type kna1-ort01,
end of s_kna1,
"Sales order header structure (Level 2)
begin of s_vbak,
vbeln type vbak-vbeln,
erdat type vbak-erdat,
erzet type vbak-erzet,
netwr type vbak-netwr,
waerk type vbak-waerk,
kunnr type vbak-kunnr,
end of s_vbak,
"Sales order items structure (Level 3)
begin of s_vbap,
vbeln type vbap-vbeln,
posnr type vbap-posnr,
matnr type vbap-matnr,
netwr type vbap-netwr,
waerk type vbap-waerk,
end of s_vbap.
data:
"Internal tables and Work Areas
"for all three levels of data
gt_kna1 type standard table of s_kna1,
gs_kna1 type s_kna1,
gt_vbak type standard table of s_vbak,
gs_vbak type s_vbak,
gt_vbap type standard table of s_vbap,
gs_vbap type s_vbap,
"Table which represents the data
"in tree format and passed to RS_TREE_CONSTRUCT
gt_node type standard table of snodetext,
gs_node type snodetext.
constants:
c_col_key type c length 1 value col_key,
c_col_data type c length 1 value col_normal,
c_col_curr type c length 1 value col_total,
c_col_kunnr type c length 1 value col_key,
c_col_vbeln type c length 1 value col_positive,
c_col_posnr type c length 1 value col_group.
start-of-selection.
perform load_all_data.
perform prepare_node_table.
perform display_list_tree.
form load_all_data .
"Read Customer data (Level 1)
select
kunnr
land1
name1
ort01
from kna1
into table gt_kna1
up to 50 rows.
"Read corresponding Sales Order headers (Level 2)
select
vbeln
erdat
erzet
netwr
waerk
kunnr
from vbak
into table gt_vbak
for all entries in gt_kna1
where
kunnr = gt_kna1-kunnr.
"Read corresponding Sales Order items (Level 3)
select
vbeln
posnr
matnr
netwr
waerk
from vbap
into table gt_vbap
for all entries in gt_vbap
where
vbeln = gt_vbap-vbeln.
endform. " LOAD_ALL_DATA
form prepare_node_table .
data:
l_netwr type c length 15.
"Create a root node
gs_node-tlevel = 1.
* gs_node-type = 'H'.
gs_node-name = 'Customers'.
gs_node-nlength = 20.
gs_node-color = c_col_key.
gs_node-text = 'Customer Sales Report'.
gs_node-tlength = 50.
append gs_node to gt_node.
loop at gt_kna1 into gs_kna1.
clear gs_node.
gs_node-tlevel = 2.
"Customer Number
gs_node-name = gs_kna1-kunnr.
gs_node-nlength = 20.
gs_node-color = c_col_kunnr.
"Country code
gs_node-text = gs_kna1-land1.
gs_node-tlength = 5.
gs_node-tcolor = c_col_data.
"Customer Name
gs_node-text1 = gs_kna1-name1.
gs_node-tlength1 = 40.
gs_node-tcolor1 = c_col_data.
"City
gs_node-text2 = gs_kna1-ort01.
gs_node-tlength2 = 25.
gs_node-tcolor2 = c_col_data.
append gs_node to gt_node.
loop at gt_vbak into gs_vbak
where kunnr = gs_kna1-kunnr.
clear gs_node.
gs_node-tlevel = 3.
"Sales Document Number
gs_node-name = gs_vbak-vbeln.
gs_node-nlength = 15.
gs_node-color = c_col_vbeln.
"Created date
gs_node-text = gs_vbak-erdat.
gs_node-tlength = 12.
gs_node-tcolor = c_col_data.
"Created Time
gs_node-text1 = gs_vbak-erzet.
gs_node-tlength1 = 10.
gs_node-tcolor1 = c_col_data.
"Net worth
l_netwr = gs_vbak-netwr.
gs_node-text2 = l_netwr.
gs_node-tlength2 = 15.
gs_node-tcolor2 = c_col_curr.
"Currency
gs_node-text3 = gs_vbak-waerk.
gs_node-tlength3 = 5.
gs_node-tcolor3 = c_col_curr.
append gs_node to gt_node.
loop at gt_vbap into gs_vbap
where vbeln = gs_vbak-vbeln.
clear gs_node.
gs_node-tlevel = 4.
"Item Number
gs_node-name = gs_vbap-posnr.
gs_node-nlength = 15.
gs_node-color = c_col_posnr.
"Material Number
gs_node-text = gs_vbap-matnr.
gs_node-tlength = 12.
gs_node-tcolor = c_col_data.
"Net worth
l_netwr = gs_vbap-netwr.
gs_node-text1 = l_netwr.
gs_node-tlength1 = 15.
gs_node-tcolor1 = c_col_curr.
"Currency
gs_node-text2 = gs_vbap-waerk.
gs_node-tlength2 = 5.
gs_node-tcolor2 = c_col_curr.
append gs_node to gt_node.
endloop.
endloop.
endloop.
endform. " PREPARE_NODE_TABLE
form display_list_tree .
call function 'RS_TREE_CONSTRUCT'
* EXPORTING
* INSERT_ID = '000000'
* RELATIONSHIP = ' '
* LOG =
tables
nodetab = gt_node
exceptions
tree_failure = 1
id_not_found = 2
wrong_relationship = 3
others = 4
.
if sy-subrc <> 0.
write sy-subrc.
endif.
call function 'RS_TREE_LIST_DISPLAY'
exporting
callback_program = sy-repid.
endform. " DISPLAY_LIST_TREE
